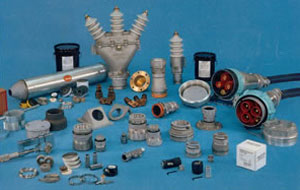

High Voltage

Mining PDF drawings available upon request.

415 and 515 Portable High-Voltage Cable Couplers

EPDM Insulators -- Dura-Tube 500 Ampers / 15,000 Volts Maximum

Features

Corrosion-Resistant Aluminum
Rigid, Non-Breakable EPDM Insulators
500 Amp Contacts
Portable Cable Mounting
Switchgear or Equipment Mounting
Standard Cover, Stress Control Kit, Instructions Included

High Voltage

Click on image to download
Product Catalog

Compound is NOT included and is not required up to 7,500 Volts. ABOVE 7,500 Volts and when compound is required, use COLDPOUR® Compound. Do NOT use asphalt compound with EPDM style couplers. Compound mandatory for 15kv.

Benefits

Superior Electrical and Physical Protection
Fewer Mating Problems
Quicker Installation
Quick Connect-Disconnect
Versatile Application

475 and 575 Portable High-Voltage Cable Couplers

Polyester Fiberglass Insulator 500 Ampers / 7,500 Volts Maximum

This series is the same as the 415 and 515 series except the insulator is polyester fiberglass rather than EPDM. Asphalt compound is included.

366 Portable High-Voltage Cable Couplers

EPDM Insulators -- Continu-Shield 200 Ampers / 6,600 Volts Maximum

Features

Corrosion-Resistant Aluminum
Compact Design
Unbreakable Molded EPDM Insulators
Continuous Shield Design
Airtight Insulator Connection
Double Start Acme Thread
NO Compound Required

Benefits

No Compound Required
Small Size, Lightweight
More Economical
Better Fault Protection
Better Electrical Characteristics
